NASA Proves Lunar Dust Shield Works, Clearing Path For Safer Moon Missions

Insider Brief

• NASA successfully tested its Electrodynamic Dust Shield on the Moon, proving it can remove harmful lunar dust from key surfaces.
• The technology uses electrical forces to lift and clear dust, protecting equipment like radiators, solar panels, and spacesuits.
• The dust shield will fly on future Artemis missions, supporting long-term lunar operations and potential use on Mars.

ASA has successfully tested a new technology that clears abrasive lunar dust from vital surfaces, offering a solution to one of the most stubborn hazards in space exploration.

The Electrodynamic Dust Shield (EDS), developed at NASA’s Kennedy Space Center in Florida, was tested on the lunar surface during Firefly Aerospace’s Blue Ghost Mission 1, which concluded on March 16, according to a NASA statement. The test confirmed that the shield could remove layers of lunar regolith — commonly referred to as Moon dust — from materials such as glass and thermal radiators. Before-and-after images provided by NASA showed dust-covered surfaces visibly cleared following activation of the system.

The stakes are high, the agency points out: lunar dust is electrostatically charged and sticks to nearly everything. Its jagged, abrasive grains can damage spacesuits, scratch instrument lenses, block solar panels, and even pose health risks to astronauts’ lungs. That makes dust not just a nuisance, but a mission-critical issue for future Moon and Mars operations.

“Lunar dust is one of the most challenging features of living and working on the lunar surface,” NASA said in its March release.

The agency noted that the EDS technology uses electrodynamic forces — essentially, electrically generated waves — to lift and transport dust particles away from sensitive surfaces without the need for moving parts or manual cleaning.

Artemis Mission

“For these CLPS and Artemis missions, dust exposure is a concern because the lunar surface is far different than what we’re used to here,” said Dr. Charles Buhler, lead research scientist at the Electrostatics and Surface Physics Laboratory at Kennedy, in a previous statement. “Lunar regolith dust can get into gaskets and seals, into hatches, and even into habitats, which can pose a lot of issues for spacecraft and astronauts.”

The test marks a significant step for NASA as it moves forward with its Artemis campaign, which aims to return humans to the Moon later this decade and establish a sustainable presence on the surface. The EDS system is slated for further demonstration in future Artemis payloads, including another lunar delivery scheduled for January 15 next year. That mission will also ride with Firefly Aerospace, as part of NASA’s Commercial Lunar Payload Services (CLPS) initiative.

“This dust-mitigating technology is one of 10 payloads aboard the next lunar delivery,” NASA said. “It will use electrical forces to lift and remove lunar regolith from various surfaces.”

The dust shield is already being positioned as a key piece of infrastructure for sustained lunar and planetary operations. In addition to spacesuits, it could protect solar panels, thermal control systems, camera lenses, and other mission-critical hardware that would otherwise be compromised by dust.

Game Changers

The technology was created with support from NASA’s Game Changing Development Program, part of the agency’s Space Technology Mission Directorate. The initiative focuses on maturing high-impact technologies that fill critical gaps in NASA’s exploration and science goals.

Long-term, NASA suggests without mitigation, lunar dust could shorten the lifespan of equipment, disrupt mission timelines, and pose real health hazards for astronauts in long-duration missions.

“This milestone marks a significant step toward sustaining long-term lunar and interplanetary operations,” NASA said in its statement, adding that the EDS is “paving the way for future dust mitigation solutions.”

The shield works by embedding electrodes into the surface of a panel. When activated, these electrodes generate traveling electric fields that push dust particles off the surface. The approach requires little power, involves no mechanical parts, and can be adapted to a wide range of applications—from astronaut boots to thermal radiators.

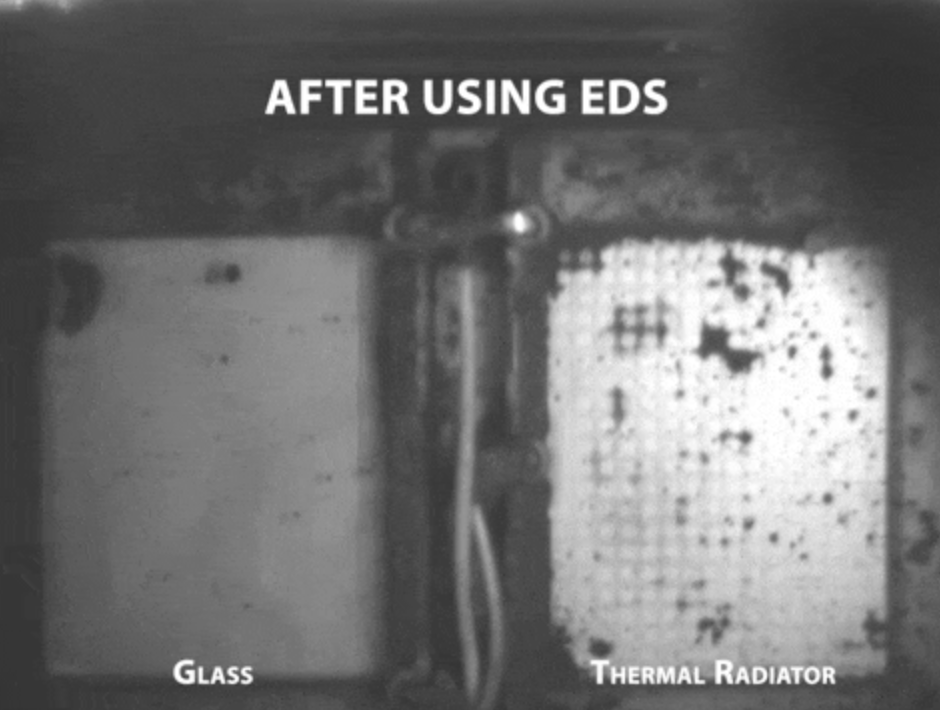

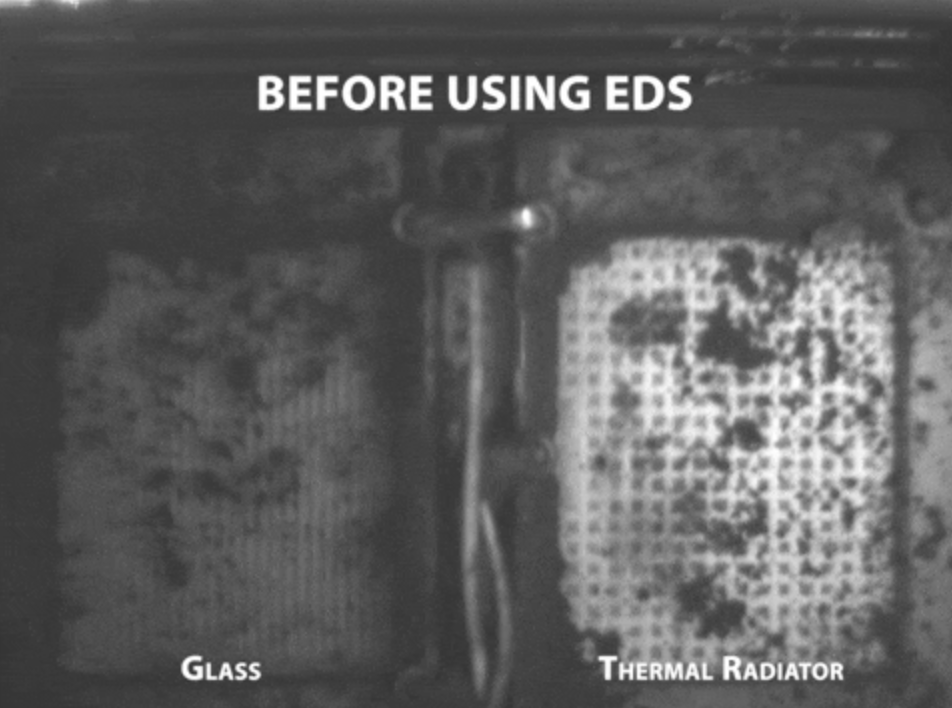

During the Blue Ghost Mission 1, NASA’s payload included test surfaces coated with lunar dust simulant. The “before” photos captured surfaces nearly opaque from the simulated regolith. After activating the EDS system, follow-up images revealed that the dust had been removed from critical areas, validating the system’s performance in a real-world lunar environment.

Next Steps

Looking ahead, researchers at Kennedy Space Center plan to build on this momentum. With the Artemis program charting a return to the Moon that includes lunar habitats and surface mobility, dust protection will be critical. The EDS may play a role not only in keeping astronauts safe, but also in protecting power systems, life-support components, and scientific instruments.

NASA also sees potential use cases on Mars, where dust storms are a constant challenge and energy reliability is a persistent issue. If EDS technology proves adaptable to the Martian environment, it could be instrumental in future human and robotic missions there as well.

The next scheduled test will assess the EDS’s effectiveness across a broader range of materials and operating conditions. With the continued backing of NASA’s technology programs and its commercial partners, the shield could soon become a standard feature of lunar exploration gear.
